Introduction to the Next-Generation Autonomous Transport Architecture

The telecommunications industry is undergoing a foundational paradigm shift as it transitions from the established 5G infrastructure toward the deterministic, autonomous, and ultra-secure architectures required for 6G networks. This evolution demands a transport network capable of delivering unprecedented flexibility, zero-touch automation, and quantum-resistant security cryptographic frameworks. At the absolute core of this technological evolution lies the necessity to seamlessly orchestrate heterogeneous hardware resources across disparate optical, packet, and Internet Protocol (IP) domains. Furthermore, this orchestration must occur while establishing secure, end-to-end multi-tenant environments that guarantee stringent Service Level Agreements (SLAs). Cognitive Controller, an edge-cloud-native Software-Defined Networking (SDN) controller has emerged as the premier foundational framework designed specifically to govern these autonomous 6G transport networks.1



By bridging the physical optical substrate and the logical IP routing domains through comprehensive, full-lifecycle orchestration, Cognitive Controller serves as a highly advanced hierarchical SDN controller capable of addressing the complex, multi-dimensional requirements of multi-domain network topologies.2 Originally conceptualized within the Horizon 2020 5GPPP Cognitive Controller project and subsequently institutionalized within ETSI, the controller has undergone rapid iterative development, releasing new versions biannually.3 This report synthesizes the structural paradigms, multi-layer data models, configuration payloads, and service handler mechanisms necessary to deploy a quantum-secured, intent-driven network slice using Cognitive Controller. The analysis meticulously details the architectural advancements culminating in Release 6, which cemented IP-Optical convergence, policy-driven closed-loop automation, and the integration of IETF-aligned Network Slice Controllers (NSC).2 Moreover, it explores the critical integration of Quantum Key Distribution (QKD) technologies—first introduced in Release 4—which fundamentally insulates the transport layer against catastrophic cryptographic vulnerabilities posed by future quantum computing capabilities.1

The integration of QKD into an open and programmable network architecture represents a monumental leap in network security, transitioning cryptographic key lifecycle management from isolated, proprietary hardware silos into a holistic, vendor-neutral ecosystem orchestrated entirely by the SDN control plane.9 By complying with ETSI standard specifications, specifically ETSI GS QKD-014, QKD-015, and QKD-018, Cognitive Controller enables dynamic routing and resource allocation for quantum links and nodes, establishing secure communication channels that strictly adhere to the laws of quantum mechanics.1 This blueprint serves as an exhaustive technical guide to the underlying microservices, protocol integrations, and data modeling strategies required to realize this advanced, multilayered, and quantum-secured network slice environment.

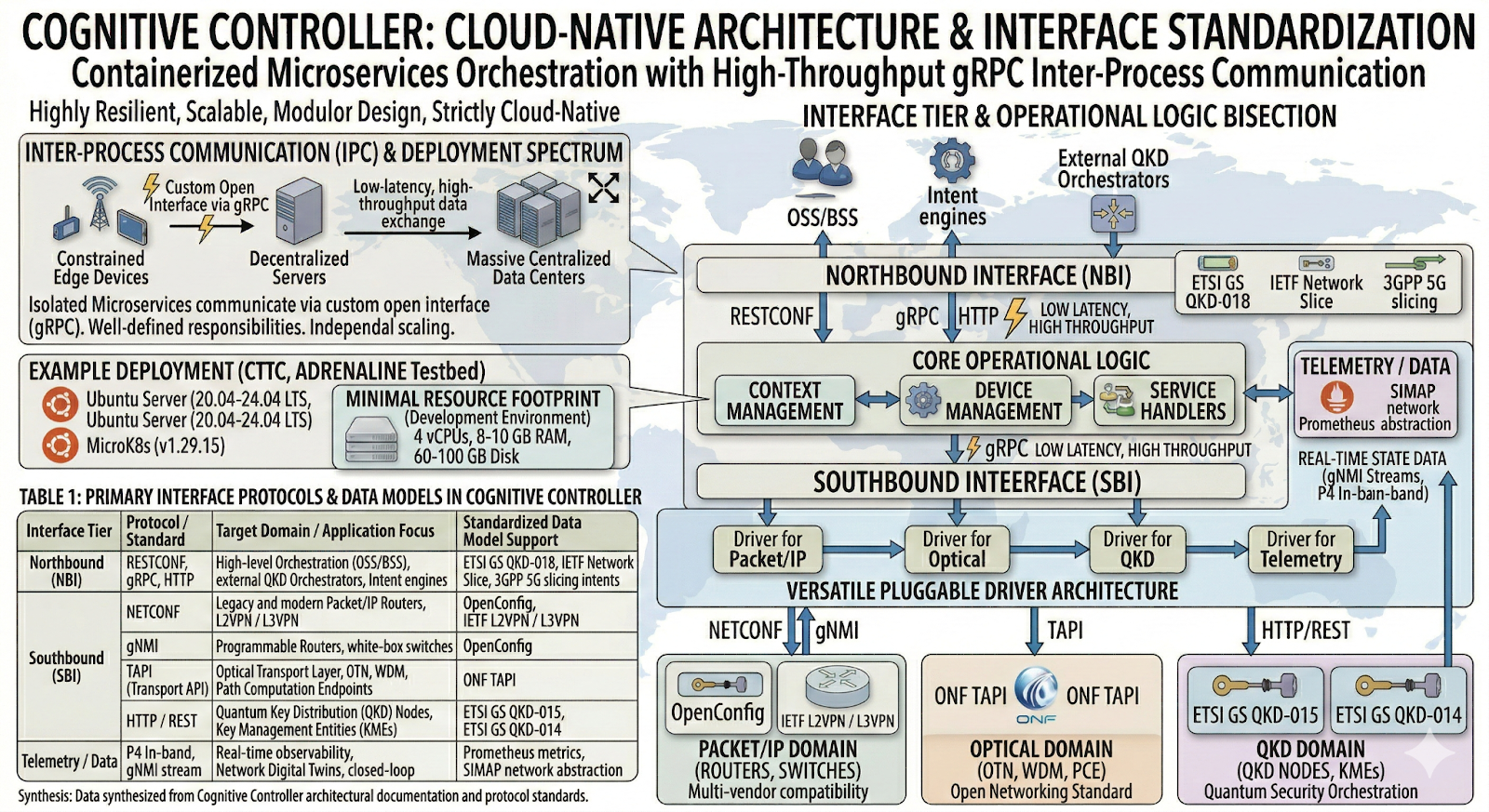

Cognitive Controller Cloud-Native Microservices Architectural Framework

To function as a highly resilient and scalable end-to-end (E2E) SDN orchestrator, the architectural foundation of Cognitive Controller completely abandons legacy monolithic software designs in favor of a strictly cloud-native architecture based entirely on containerized microservices.3 This modular design philosophy ensures that each functional component is isolated, possesses well-defined responsibilities, and can scale independently based on the immediate processing demands of the network load.3



Inter-Process Communication and Controller Deployment

Within the Cognitive Controller environment, microservices do not share a common memory space; rather, all communication between them is mediated via a custom, open interface relying heavily on the Google Remote Procedure Call (gRPC) framework.5 The utilization of gRPC ensures exceptionally low-latency, high-throughput, and strongly typed data exchange, which is critical for cloud-scale telecommunications environments tasked with managing a massive number of simultaneous traffic flows.5 The controller is designed to be deployed across a wide spectrum of hardware footprints, accommodating everything from constrained edge devices to massive centralized data centers. Standard deployment environments, such as the ADRENALINE testbed utilized by the CTTC for packet/optical transport validation, typically rely on infrastructure running Ubuntu Server (versions 20.04.6 LTS to 24.04.3 LTS) operating MicroK8s (specifically v1.29.15 or similar distributions) to orchestrate the containerized microservices.3 Even within development environments, the system maintains a highly efficient resource footprint, requiring a minimum specification of merely 4 vCPUs, 8 to 10 GB of RAM, and 60 to 100 GB of disk storage to execute the full suite of controller and slice management functions.3

Interface Standardization and Data Plane Abstraction

The fundamental operational premise of Cognitive Controller is the strict separation of the control plane from the underlying data plane, utilizing highly standardized Application Programming Interfaces (APIs) to completely abstract the underlying hardware complexity from the higher-level orchestration logic.3 To achieve this, the controller’s architecture is bisected into Northbound Interfaces (NBI) and Southbound Interfaces (SBI), mediated by a centralized core of operational logic components including Context Management, Device Management, and Service Handlers.4

Table 1 delineates the primary interface protocols and data models deployed within the Cognitive Controller architecture to ensure cross-domain compatibility and abstraction.

Interface Tier

Protocol / Standard

Target Domain / Application Focus

Standardized Data Model Support

Northbound (NBI)

RESTCONF, gRPC, HTTP

High-level Orchestration (OSS/BSS), external QKD Orchestrators, Intent engines.

ETSI GS QKD-018, IETF Network Slice, 3GPP 5G slicing intents.

Southbound (SBI)

NETCONF

Legacy and modern Packet/IP Routers, L2/L3 VPN establishment.

OpenConfig, IETF L2VPN / L3VPN service provisioning models.

Southbound (SBI)

gNMI

Programmable Routers, white-box switches, high-speed configuration.

OpenConfig YANG schemas.

Southbound (SBI)

TAPI (Transport API)

Optical Transport Layer, OTN, WDM, Path Computation Endpoints.

ONF TAPI (Open Networking Foundation Transport API).

Southbound (SBI)

HTTP / REST

Quantum Key Distribution (QKD) Nodes, Key Management Entities (KMEs).

ETSI GS QKD-015, ETSI GS QKD-014.

Telemetry / Data

P4 In-band, gNMI stream

Real-time observability, Network Digital Twins, closed-loop automation.

Prometheus metrics, SIMAP network abstraction.

Data synthesized from Cognitive Controller architectural documentation and protocol standards.1

The Northbound Interface exposes an API to external operational entities, such as advanced Operational Support Systems (OSS), Business Support Systems (BSS), or specific multi-domain orchestrators, utilizing the RESTCONF protocol over HTTP.13 Conversely, the Southbound Interface employs a highly versatile pluggable driver architecture designed to interact dynamically with diverse network equipment across disparate vendors without requiring core codebase modifications.4 The sophisticated implementation of the Driver API allows for the seamless setup, modification, and teardown of configuration rules across heterogeneous hardware ecosystems, utilizing protocols like gNMI and NETCONF to interact directly with the underlying data models maintained by the network elements.4

Component Interactions and Service Handling Mechanisms

The operational workflow for establishing connectivity within Cognitive Controller is heavily reliant on a sequence of internal microservice interactions. When an external entity injects a connectivity service request into the NBI via a gRPC call, it is immediately processed by the centralized Service component.13 This component features a dedicated Service Servicer block tasked with parsing the incoming request and dispatching it to the appropriate Service Handler API based on the specific type of service requested (e.g., optical flexgrid, L2 VPN, or a quantum virtual link).4

Because the Service component must inherently understand the current state, topology constraints, and specific details of existing connectivity services and the physical devices supporting them, it continuously interrogates the Context Management component.13 The Context Management database acts as the singular source of truth for the controller, storing and retrieving up-to-date attributes regarding the network's topological state.13 Once the correct parameters are formulated, the Service Handler delegates the actual hardware execution to the Device component, which interfaces with the specific pluggable driver required for that hardware segment (e.g., a TAPI driver for an optical switch or a NETCONF driver for an IP router) to enforce the new configuration state.4

The transition from siloed, technology-specific domain controllers to a unified hierarchical orchestrator utilizing standardized data models represents a monumental architectural leap for the telecommunications industry.4 By abstracting the physical layer entirely through OpenConfig and TAPI, Cognitive Controller successfully negates historical vendor lock-in challenges and permits the cross-layer mapping of logical services directly onto physical assets in a programmatic, intent-driven manner.4

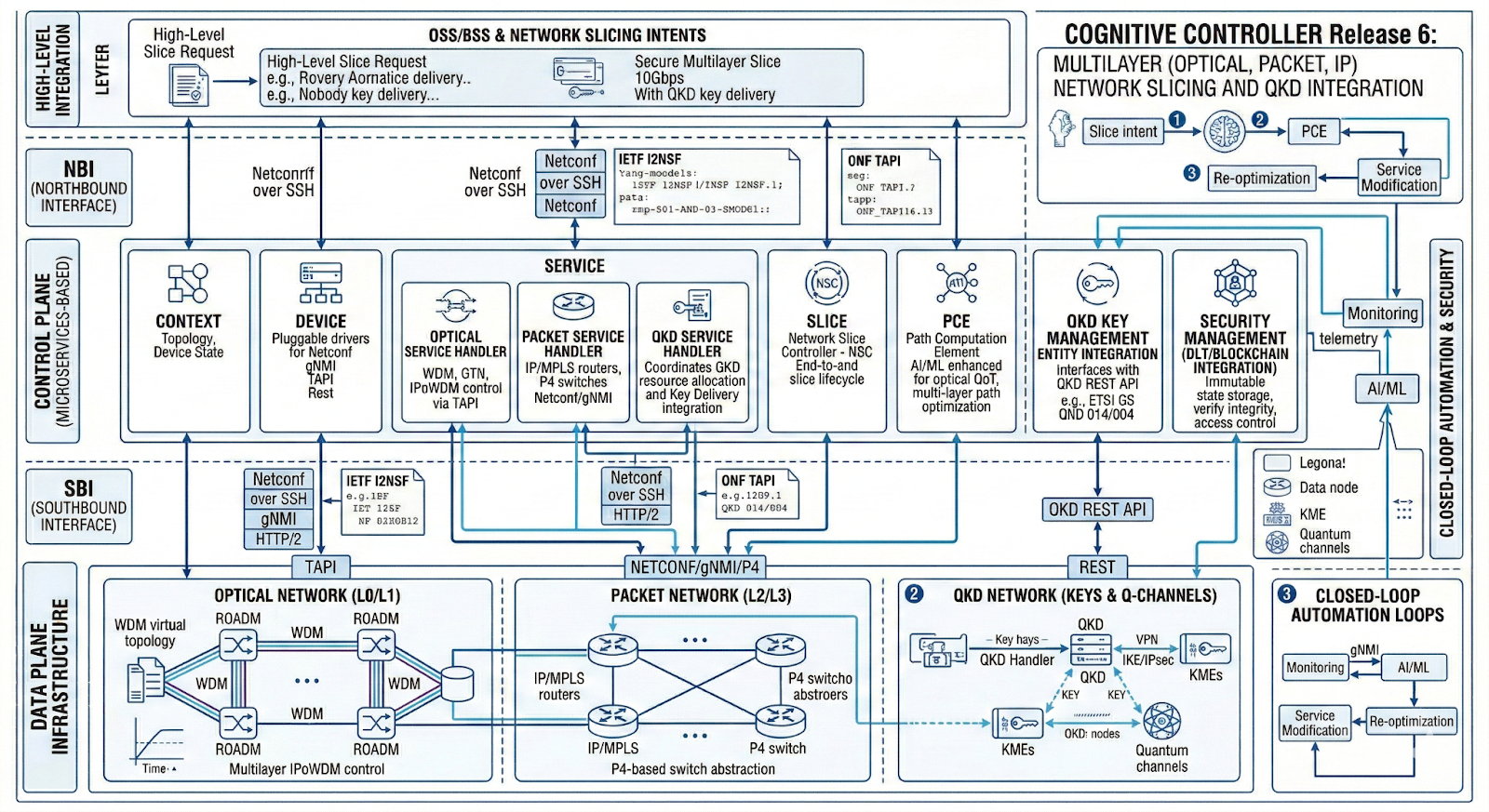

Multilayer Convergence: Orchestrating the Optical and Packet Domains

The realization of ultra-reliable, high-performance 6G network slices relies fundamentally on the deep integration and convergence of underlying Layer 0 (L0), Layer 1 (L1), Layer 2 (L2), and Layer 3 (L3) infrastructure.4 Traditional network management paradigms enforced strict operational silos between the packet and optical domains, severely limiting dynamic resource allocation and overall network agility.17 Cognitive Controller Release 6 actively champions IP-Optical convergence, successfully dissolving these historical barriers and establishing a continuum of control extending from the physical fiber up to the logical IP routing tables.2



Optical Transport Network Management (L0/L1)

Cognitive Controller interfaces natively with the optical domain infrastructure and subordinate optical SDN controllers by leveraging the Open Networking Foundation (ONF) Transport API (TAPI).4 Through this specialized Southbound Interface, the Cognitive Controller controller executes comprehensive management over wideband optical networks, Optical Transport Networks (OTN), and Wavelength-Division Multiplexing (WDM) segments.4

In anticipation of next-generation optical network evolution, the controller has been specifically engineered to support advanced physical layer technologies. This includes robust support for Spatial Division Multiplexing (SDM)—facilitated through the management of parallel optical fibers—as well as comprehensive wideband transmission control encompassing the S, C, and L optical bands.5 The optical service handlers within Cognitive Controller are capable of dynamically provisioning flexgrid lightpaths, executing real-time optical bandwidth expansion, managing advanced coherent transceivers, and overseeing end-to-end IP over WDM (IPoWDM) service management.2

This precise granular control over the physical optical substrate is an absolute prerequisite for the successful integration of Quantum Key Distribution. Routing fragile quantum channels (Q-Ch), which carry single photons representing qubits, alongside high-power classical public channels (P-Ch) used for data transmission and key distillation, requires highly precise attenuation, isolation, and wavelength management.9 Cognitive Controller achieves this by extending the SBI support to manage TAPI Path Computation endpoints directly, allowing the controller to dictate precise spectral allocations that prevent classical optical power from overwhelming the delicate quantum signals.15

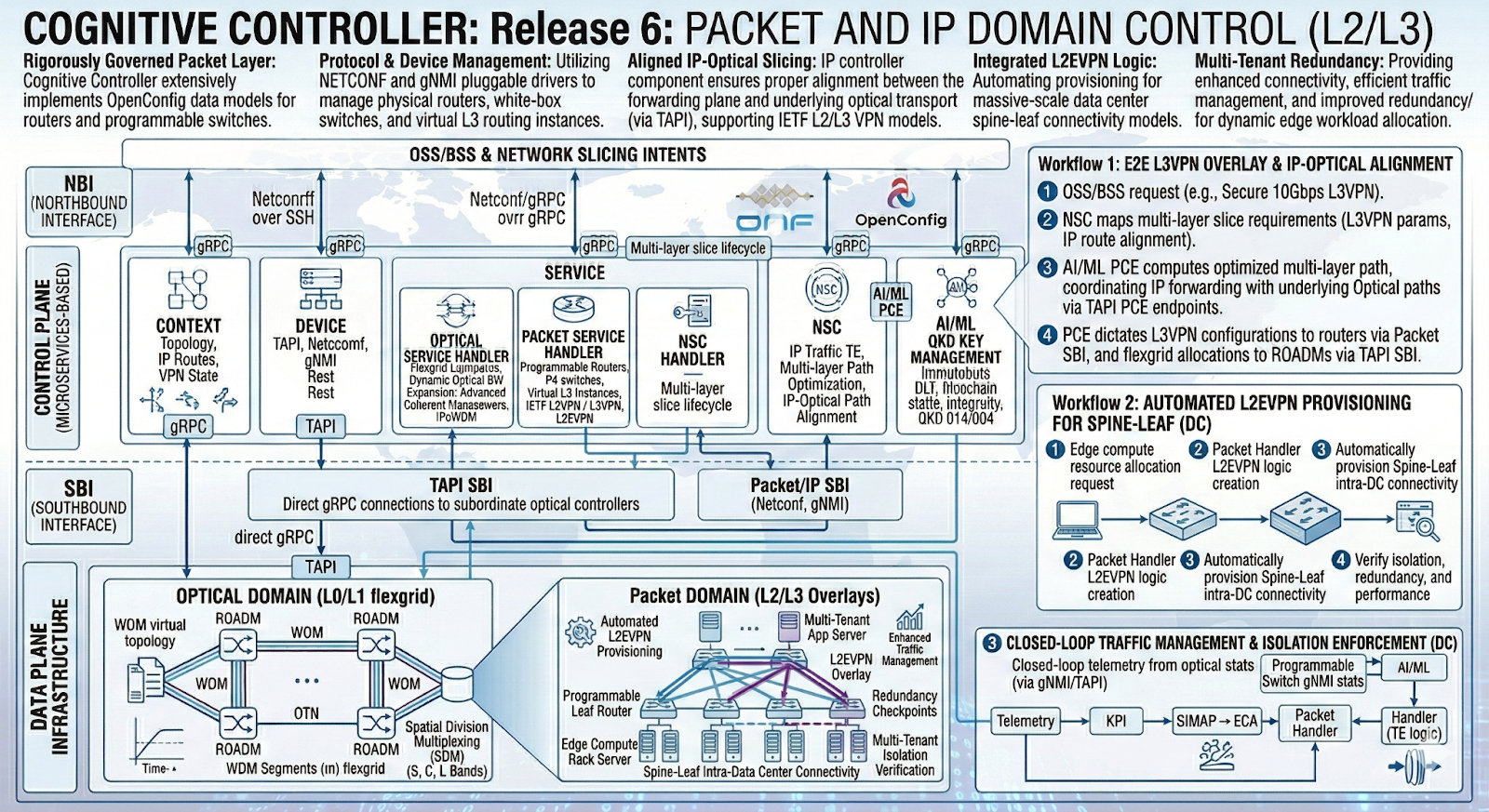

Packet and IP Domain Control (L2/L3)

Concurrently, the packet layer is rigorously governed through the extensive implementation of OpenConfig data models.4 Utilizing industry-standard NETCONF and gNMI protocols through its pluggable SBI drivers, Cognitive Controller manages physical routers, programmable white-box switches, and virtual L3 routing instances.15 By supporting the IETF L2/L3 VPN Service Provisioning models, the IP controller component ensures proper alignment between the IP forwarding plane and the underlying optical transport path previously established via TAPI.15



To accommodate the specific architectural requirements of modern, massive-scale data centers, recent integrations within the Cognitive Controller project have augmented the controller with advanced Layer 2 Ethernet Virtual Private Networks (L2EVPN) control logic.3 L2EVPNs constitute a critical network service type that facilitates the extension of Ethernet networks seamlessly over common IP or MPLS backbones.3 The integration of L2EVPN orchestration directly into Cognitive Controller is highly relevant for establishing novel spine-leaf-based intra-data center connectivity models.3 By automating L2EVPN provisioning, Cognitive Controller provides enhanced multi-tenant connectivity, highly efficient traffic management, and improved redundancy and failover capabilities, which are strictly required for the dynamic allocation of edge-computing workloads and network functions.3

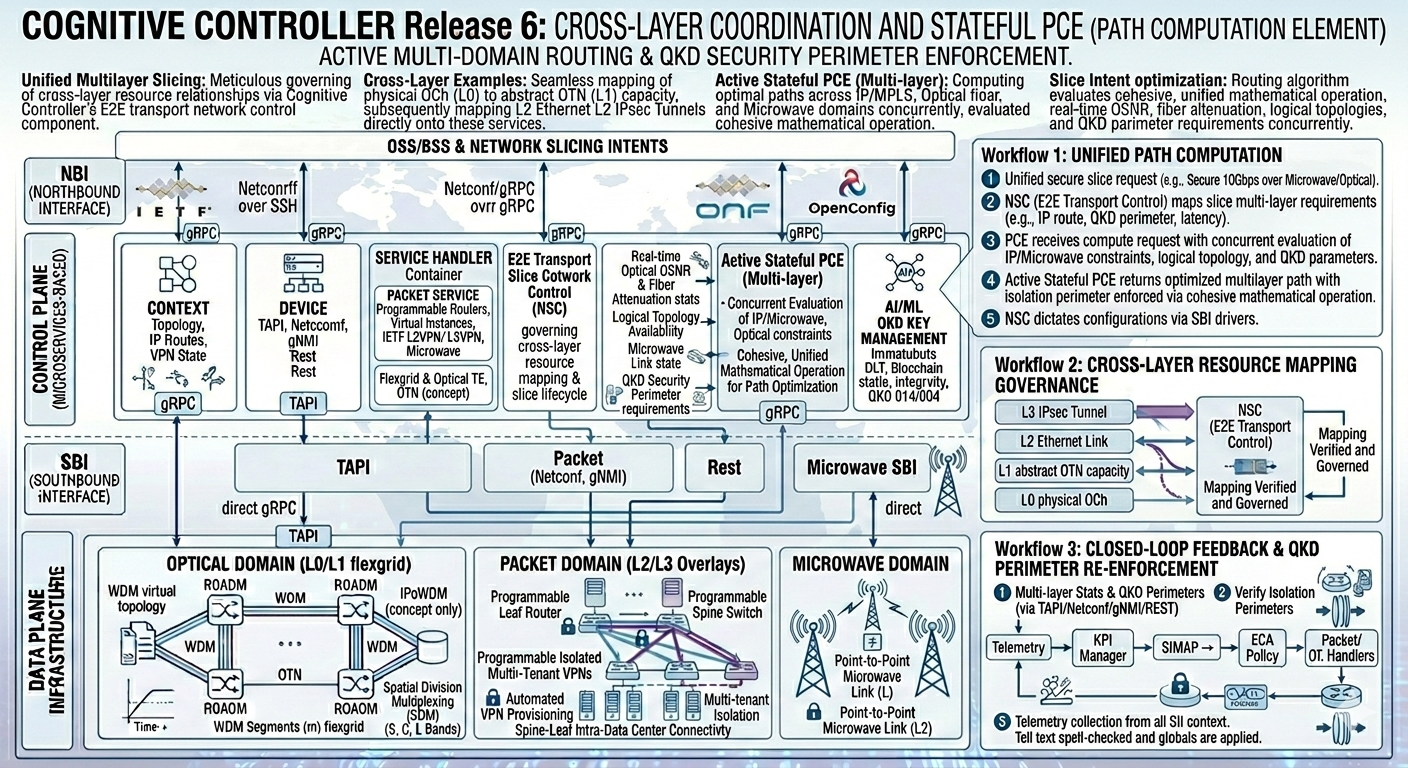

Cross-Layer Coordination and the Stateful Path Computation Element (PCE)

The intelligent mapping of virtual network resources to the physical infrastructure is meticulously governed by Cognitive Controller's End-to-End (E2E) transport network control component.4 This sophisticated orchestration module actively manages cross-layer resource relationships, a critical function for genuine multilayer slicing. For instance, the orchestrator seamlessly maps specific optical channels (OCh) generated at the physical L0 level to the abstract Optical Transport Network (OTN) capacities made available at L1, and subsequently maps L2 Ethernet links or L3 IPsec tunnels directly onto these underlying transport services.4



Driving this complex orchestration is the controller's multi-layer, active stateful Path Computation Element (PCE) module.4 Unlike legacy PCEs constrained to a single technology stack, the Cognitive Controller PCE computes highly optimal routing paths across disparate technological domains simultaneously—specifically evaluating physical constraints and logical topologies across IP/MPLS networks, optical fiber runs, and even microwave transport links concurrently.4 This active stateful capability guarantees that when a highly specific network slice intent is received, the routing algorithm evaluates real-time physical constraints (such as optical signal-to-noise ratio or fiber attenuation), logical topology availability, and QKD security perimeter requirements in a cohesive, unified mathematical operation.4

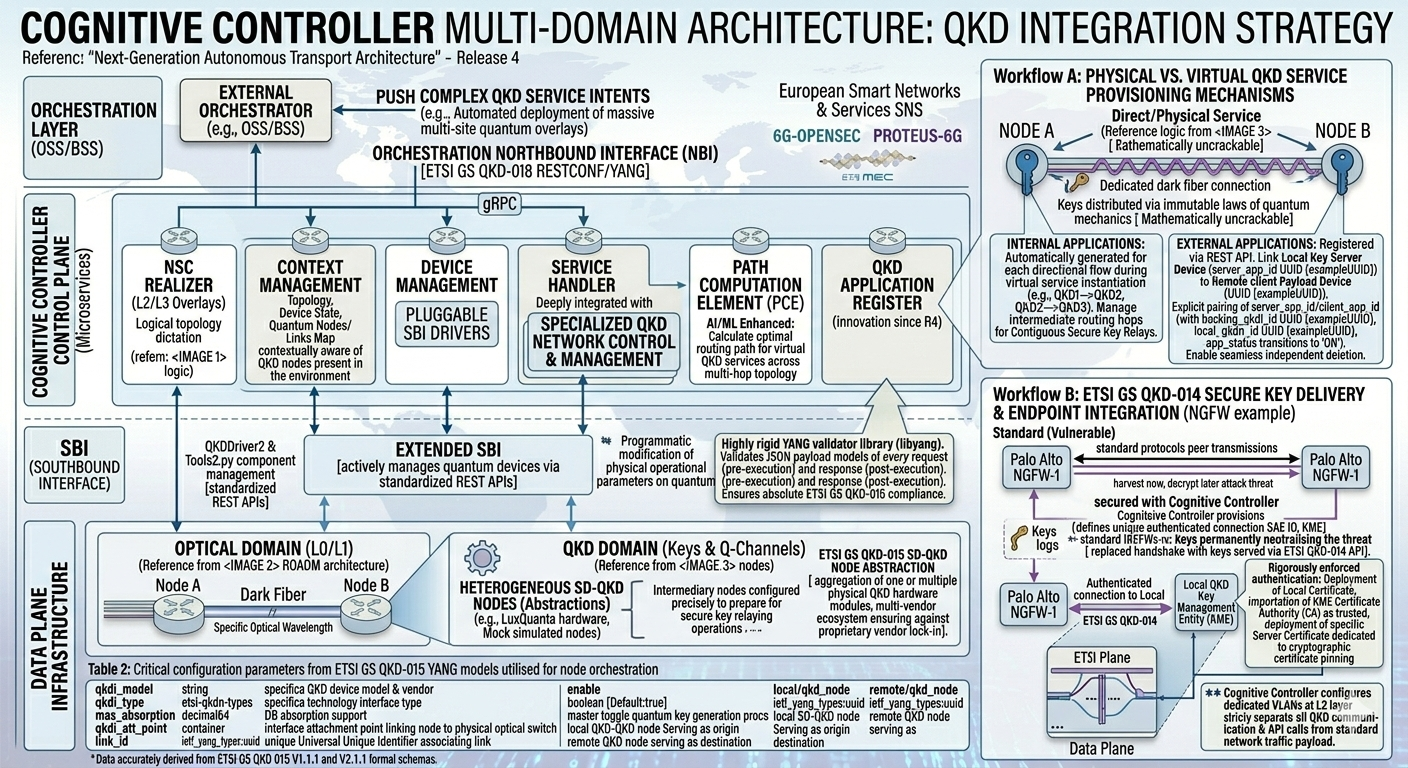

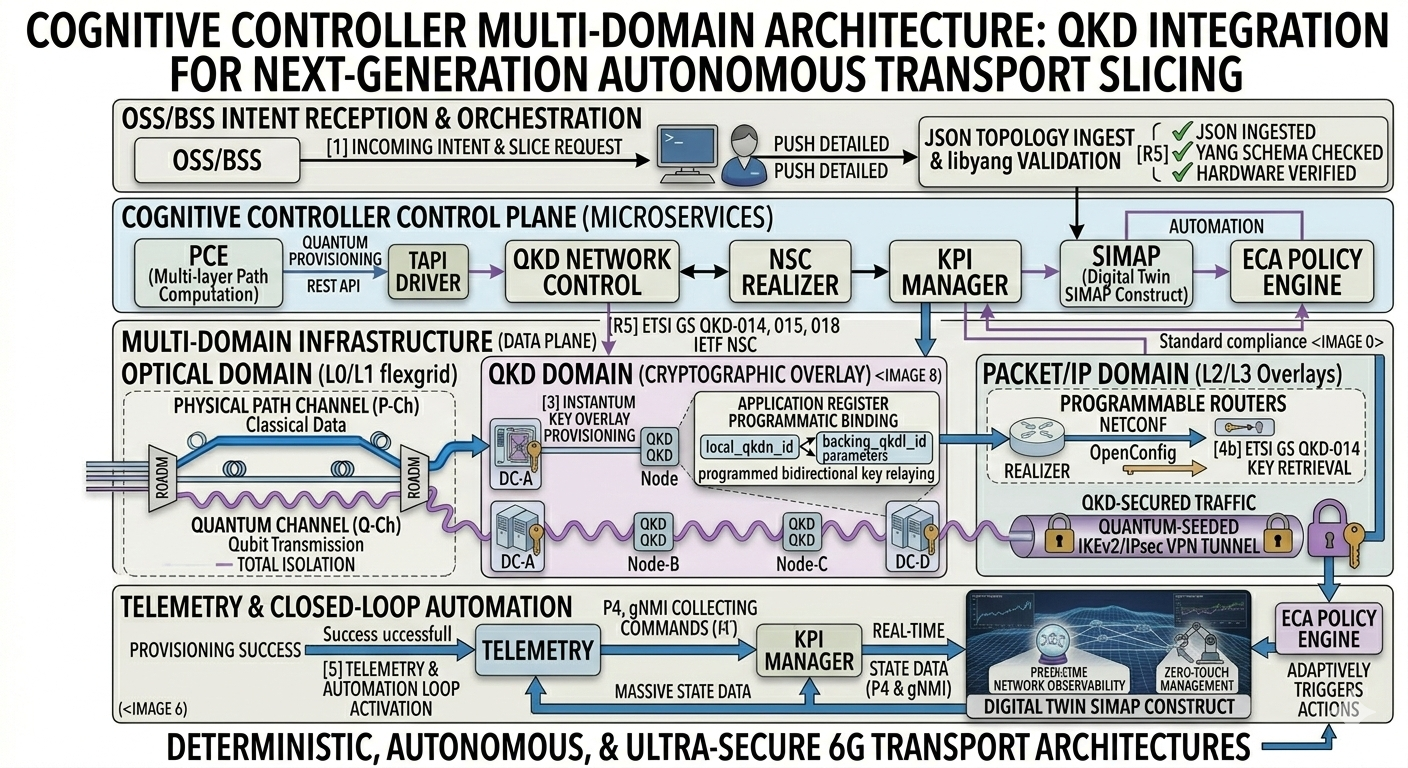

Quantum Key Distribution (QKD) Architecture and Integration Strategy

As classical encryption paradigms face imminent obsolescence due to the rapid advancement of quantum computing technologies, protecting highly sensitive telecommunications network transport layers against aggressive "harvest now, decrypt later" attacks has become an urgent strategic imperative.10 Cognitive Controller decisively addresses this looming security crisis through profound, standardized integration with Quantum Key Distribution (QKD) hardware ecosystems.1 QKD represents a paradigm shift in cryptography, establishing a quantum-safe security perimeter that leverages the immutable laws of quantum mechanics to distribute unconditional, mathematically uncrackable cryptographic keys between communicating parties.11



Cognitive Controller fundamentally restructured the the internal network topology models to accurately accommodate and map quantum nodes and quantum links, enabling highly efficient routing and real-time resource allocation for QKD networks.1 By extending the Southbound Interface to actively manage quantum network devices, Cognitive Controller facilitates the dynamic configuration of QKD systems, effectively transforming quantum cryptography from a static hardware appliance deployment into a fully programmable, software-defined network service.1 This integration highlights the powerful synergy between Software-Defined Networking and quantum security technologies, aligning perfectly with the overarching goals of European Smart Networks and Services (SNS) projects like 6G-OPENSEC and PROTEUS-6G.9

The foundational architectural standard enabling Cognitive Controller to discover, configure, and continuously monitor heterogeneous QKD devices is ETSI GS QKD-015.9 This standard formally defines a Software-Defined Quantum Key Distribution (SD-QKD) node abstraction, which represents an aggregation of one or multiple physical QKD hardware modules that natively interface with an SDN controller using standard telecommunication protocols.21 This approach is crucial to realizing a truly open, multi-vendor ecosystem, ensuring that operators can deploy, configure, and manage quantum nodes from distinct manufacturers—such as LuxQuanta hardware alongside simulated mock nodes—without falling victim to proprietary vendor lock-in.9

Cognitive Controller becomes contextually aware of the QKD nodes present in the physical environment by ingesting initial network topology file descriptors formatted strictly in JSON.16 The controller utilizes a dedicated QKDDriver2 component and an associated Tools2.py operational module to manage these nodes via standardized REST APIs.9 Through these interfaces, the controller can programmatically modify physical operational parameters on the quantum hardware, such as tuning the specific operational wavelength or adjusting optical attenuation levels to optimize qubit transmission rates.9 To ensure absolute compliance with the ETSI specifications, Cognitive Controller incorporates a highly rigid YANG validator library, known as libyang, which validates the JSON payload models of every single request before execution and every response post-execution, entirely mitigating the risk of malformed control plane instructions disrupting the fragile quantum network.16

Table 2 outlines the critical configuration parameters extracted directly from the ETSI GS QKD-015 YANG models utilized by Cognitive Controller for node orchestration and interface setup.

Parameter Node Identifier

Data Type

Structural Details / Operational Description

qkdi_model

string

Defines the specific QKD device model and vendor hardware specification.

qkdi_type

etsi-qkdn-types

Identifies the specific QKD technology interface type utilized for transmission.

max_absorption

decimal64

Specifies the maximum optical absorption supported by the node (measured in dB).

qkdi_att_point

container

Dictates the interface attachment point linking the node to a physical optical switch.

link_id

ietf_yang_types:uuid

The unique Universal Unique Identifier (UUID) identifying the specific QKD key association link.

enable

boolean (Default: true)

A master toggle that allows the controller to programmatically enable or disable the quantum key generation process for a specific link.

local/qkd_node

ietf_yang_types:uuid

The unique UUID of the local SD-QKD node serving as the origin (local_qkdn_id).

remote/qkd_node

ietf_yang_types:uuid

The unique UUID of the remote QKD node serving as the destination (remote_qkdn_id).

Data accurately derived from ETSI GS QKD 015 V1.1.1 and V2.1.1 formal schemas.16

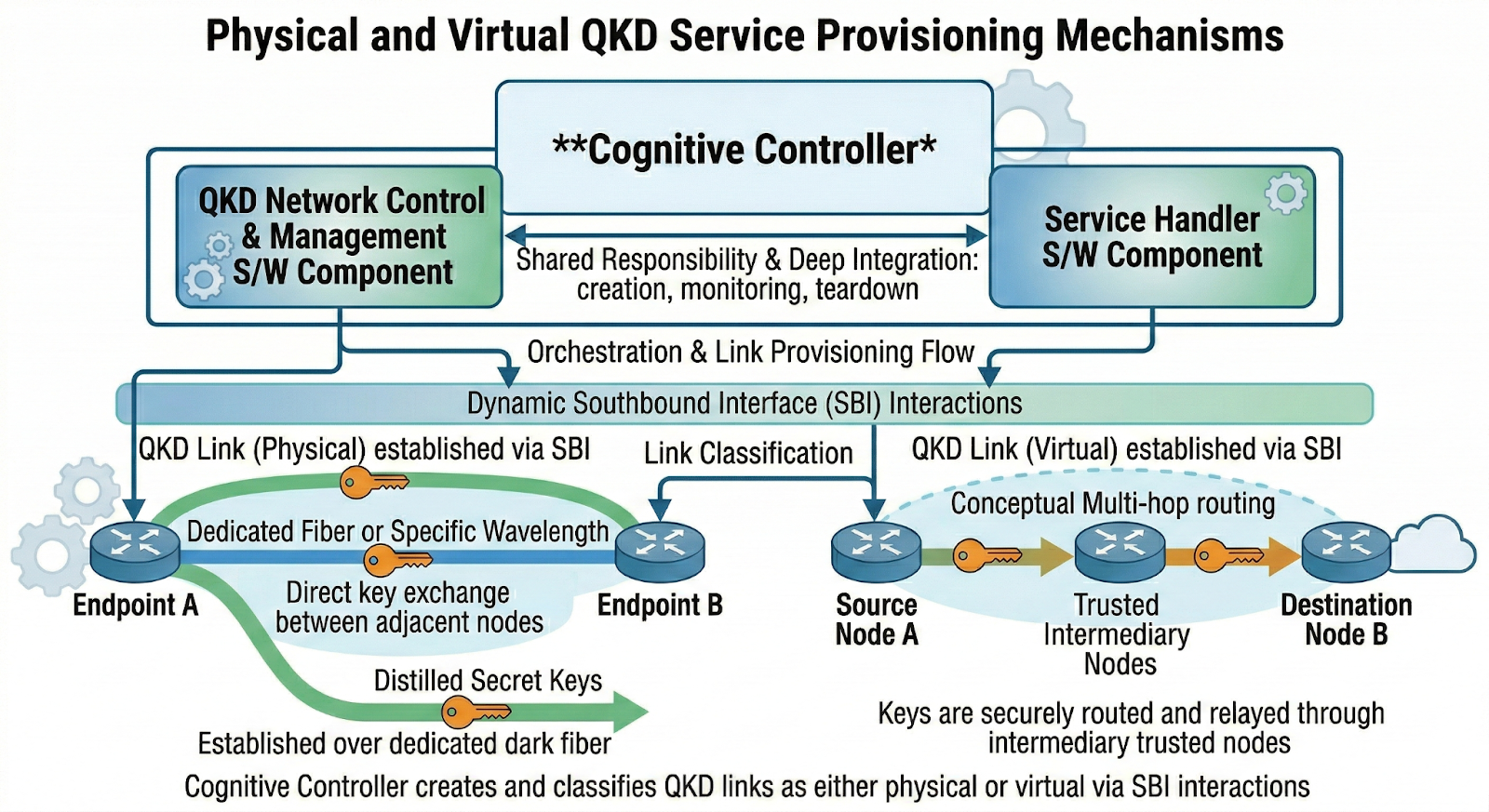

Physical and Virtual QKD Service Provisioning Mechanisms

Cognitive Controller orchestrates the delivery of QKD services through a dedicated, specialized QKD Network Control & Management software component.16 This component is deeply integrated with the central Service Handler because both share the fundamental responsibility for the creation, monitoring, and teardown of secure services between two distinct endpoints.16 The module dynamically interacts with the QKD nodes via the SBI to create QKD links that are classified as either physical or virtual.16

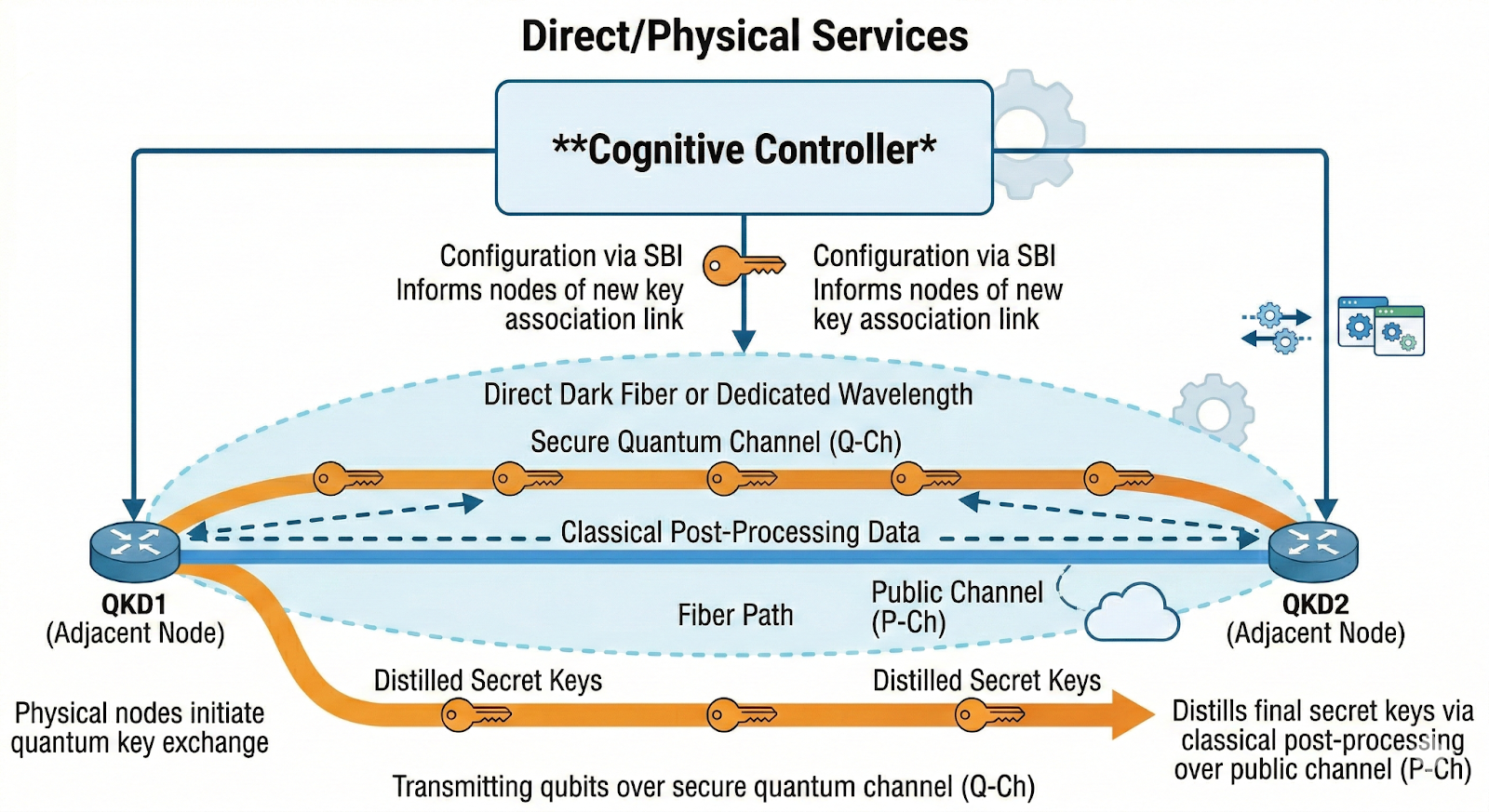

  1. Direct/Physical Services: A direct service represents a physical quantum connection established between two directly adjacent QKD nodes connected via a dedicated dark fiber or specific optical wavelength.16 This is the most operationally straightforward service type; Cognitive Controller simply informs both adjacent QKD nodes of the new key association link via the SBI.16 The physical nodes subsequently initiate the quantum key exchange, transmitting qubits over the secure quantum channel (Q-Ch) while simultaneously exchanging classical post-processing data over the public channel (P-Ch) to distill the final secret keys.16

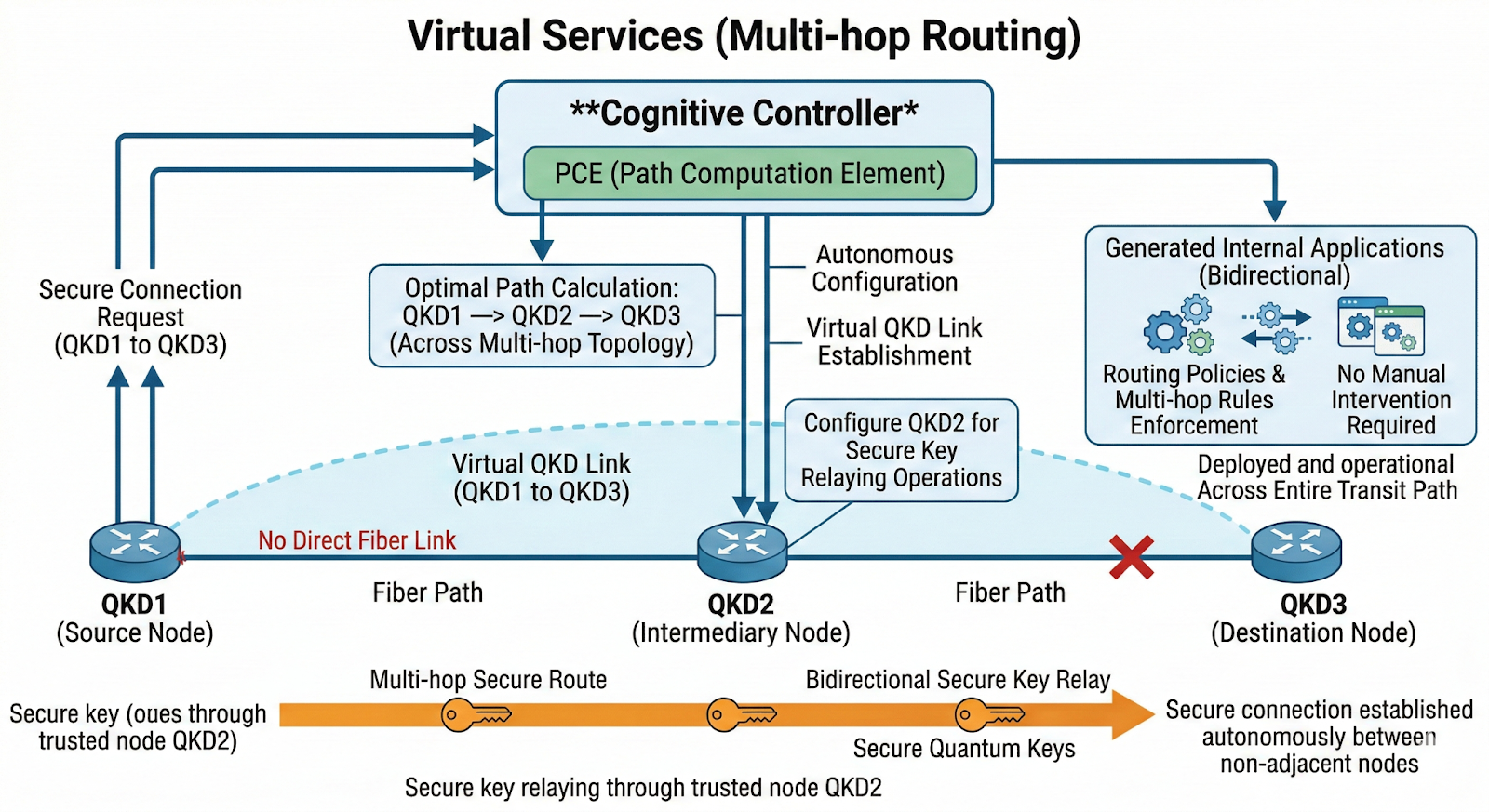

  1. Virtual Services (Multi-hop Routing): The complexity of network orchestration scales dramatically when a secure connection must be established between two non-adjacent nodes (e.g., node QKD1 and node QKD3, which lack a direct fiber connection).16 In this scenario, the quantum keys must be securely routed through an intermediary trusted node (e.g., QKD2).23 Cognitive Controller handles this immense complexity autonomously by utilizing its PCE to calculate an optimal routing path for the virtual service across the multi-hop topology.16 The controller then systematically informs all intermediary nodes about the newly established virtual QKD link, configuring them precisely to prepare for secure key relaying operations.16 To achieve this without manual intervention, the controller automatically generates bidirectional internal applications to strictly enforce routing policies and multi-hop communication rules across the entire transit path.23



QKD Application Register and Lifecycle Management

A critical and highly sophisticated innovation implemented within Cognitive Controller is the dedicated QKD Application Register.1 This register functions as the central management authority overseeing both internal and external QKD applications, dictating exactly how and where generated quantum keys are consumed by the network.20

  • Internal Applications: These software constructs are automatically generated by the Cognitive Controller core logic during the instantiation of virtual services.23 Their primary function is to manage intermediate routing hops, ensuring contiguous and highly secure key relays across distant physical topologies. For every virtual service, Cognitive Controller creates two distinct internal applications for each directional flow (e.g., configuring flow parameters from QKD1 to QKD2, and separately from QKD2 to QKD3) to ensure a highly reliable, bidirectional communication channel.23

  • External Applications: In contrast to internal routing applications, external applications must be orchestrated or manually configured via the REST API to facilitate secure key exchanges between the QKD nodes and external entities (such as IPsec routers, edge computing applications, or enterprise workloads) that explicitly require a quantum-secured connection.16 These applications link a Local Device (acting as the key server) directly to a Remote Device (acting as the client payload).23



The JSON configuration payload for registering an external application relies heavily on the precise pairing of operational UUIDs. A paramount parameter is the server_app_id, which acts as the master cryptographic identifier shared across the network.23 To securely bind a remote client device, the remote node's configuration payload must explicitly specify this exact server_app_id (or map it accurately via a corresponding client_app_id field if functioning in a standalone architecture).23 Both the server and client applications must strictly refer to a backing_qkdl_id parameter.16 This parameter explicitly identifies the underlying physical or virtual QKD link that actively secures the communication channel, while the local_qkdn_id identifies the specific physical host node providing the hardware execution.16 To finalize the instantiation, the app_status parameter state must transition to "ON", signaling the hardware that the secure communication protocol is active and ready for data exchange.23 The system's application management logic allows administrators to seamlessly delete apps and services independently, dynamically updating status fields to reflect topological changes.23

ETSI GS QKD-014: Secure Key Delivery and Endpoint Integration

While QKD-015 governs the hardware nodes, the operationalization and consumption of the distilled symmetric keys are governed by the ETSI GS QKD-014 standard.10 This standard provides a comprehensive REST-based API specification specifically designed for key delivery, enabling cryptographic network entities—ranging from hardware firewalls to Multi-access Edge Computing (MEC) applications—to securely request symmetric encryption keys directly from a QKD Key Management Entity (KME).10

The integration of Palo Alto Networks Next-Generation Firewalls (NGFW) perfectly exemplifies this operational paradigm within a Cognitive Controller orchestrated environment.10 When an enterprise site-to-site VPN tunnel is being established, standard protocols rely on IKEv2 peering transmissions to create and exchange keys, which exposes the cryptographic handshake to potential quantum interception.10 To circumvent this vulnerability, a specialized QKD profile is instantiated on the firewall via the SDN orchestrator.10 This highly secure profile defines a unique, authenticated connection to the local KME utilizing specific configuration parameters, including the Local Secure Application Entity (SAE) ID and the KME URL.10

Authentication is rigorously enforced. The configuration requires the deployment of a Local Certificate to authenticate the firewall with the KME, alongside the importation of the KME Certificate Authority (CA) as a trusted certificate, and the deployment of a specific Server Certificate dedicated to cryptographic certificate pinning.10 By successfully extracting the key creation and exchange processes entirely out of the standard IKEv2 transmission flow and replacing them with keys served via the ETSI QKD-014 API, the system effectively and permanently neutralizes the threat of unauthorized cryptographic harvesting by advanced threat actors.10 Furthermore, to ensure absolute defense-in-depth, Cognitive Controller configures dedicated VLANs at the L2 layer to strictly separate all QKD communications and API calls from standard network traffic payloads.10 Advanced deployment scenarios even extend this capability directly to edge environments, where client applications operating within an ETSI MEC domain can securely retrieve symmetric keys from the KME to encrypt highly confidential payloads before invoking REST commands on proximal MEC applications.26

Complementing this, Cognitive Controller exposes an orchestration Northbound Interface (NBI) defined strictly by the ETSI GS QKD-018 specification.16 Utilizing RESTCONF protocols and extensively validated YANG models, this high-level interface allows an overarching, multi-domain orchestrator (such as an OSS/BSS layer) to inject complex QKD service intents directly into the controller, automating the deployment of massive, multi-site quantum-secured overlays without requiring manual node-by-node configuration.16

The IETF Network Slice Controller (NSC) Integration

Translating high-level business intents and cryptographic security requirements into concrete, actionable network provisioning tasks requires a highly structured orchestration layer. To achieve this, Cognitive Controller implements a sophisticated Network Slice Controller (NSC) deeply aligned with Internet Engineering Task Force (IETF) specifications—specifically implementing the architecture defined in RFC 9543 and utilizing associated YANG data models such as draft-ietf-teas-ietf-network-slice-nbi-yang.14 This dedicated NSC software component is expressly designed to orchestrate the initial request, the physical realization, and the continuous lifecycle control of transport network slices across heterogeneous environments.28

Slice Definition, Intent Translation, and 3GPP Alignment

A transport network slice orchestrated within the Cognitive Controller environment is not merely a VLAN; it is a meticulously defined logical construct governed by a rigorous set of SLA parameters:

  • Endpoints: The precise physical or virtual termination points connecting Customer Edge (CE) devices to the slice.13

  • Connectivity Matrix: The highly specific logical topology dictating exactly how communication flows between subsets of endpoints, supporting Point-to-Point, Point-to-Multipoint, and Multipoint-to-Multipoint architectures.13

  • Service Level Behaviors and SLAs: Explicit or implicit contractual guarantees defining precise bandwidth floors, maximum latency ceilings, and highly specific deterministic forwarding expectations.13

The internal architectural logic of the NSC is bifurcated into two primary modules: the Mapper and the Realizer.29 The Mapper module acts as the ingestion point, processing incoming customer requests—which are frequently formatted as standardized 3GPP 5G end-to-end network slicing intents—and contextually translating them into the specialized IETF transport network environment parameters.28 Once mapped, the Realizer module assumes control, translating this abstract logical request into a highly concrete realization sequence, computing the exact physical and virtual network function deployment plans required to instantiate the slice on the live infrastructure.12

Hardware Abstraction and Core Data Models

To execute the deployment plan, the Realizer communicates extensively with the underlying Cognitive Controller domain controllers, issuing commands utilizing specific, standardized data models that bridge the conceptual virtual slice directly with the physical hardware.13 For deep multi-layer transport integration encompassing L0 through L3, the Cognitive Controller Operating System incorporates advanced specifications derived directly from ONF TR-532, working in tandem with the previously detailed OpenConfig models.13

The complexity of establishing a true multi-domain slice is reflected in the extensive array of model parameters dynamically handled by the slice orchestrator during provisioning:

  • Air-interface and Co-channel-profile parameters: Utilized for managing shared frequency profiles in hybrid wireless and microwave transport environments.13

  • Ethernet-container and MAC-interface parameters: Specifically deployed for configuring dedicated Layer 2 transport structures and interface details.13

  • Core-model and LTP-augment parameters: Essential for mapping high-level Logical Termination Points (LTPs) to precise physical hardware interfaces across the routing topology.13

  • Firmware and TDM-container parameters: Utilized for managing device software versions and integrating legacy Time Division Multiplexing networks.13

Network Slice Isolation Paradigms

A paramount, non-negotiable requirement for 6G topologies and zero-trust networks is the strict, deterministic isolation of workloads to fundamentally prevent lateral movement by malicious actors and to completely eliminate cross-slice resource starvation. The IETF transport network slice model dictates several rigid isolation paradigms that the Cognitive Controller NSC is engineered to enforce natively across the infrastructure.13

Table 3 details the gradient of isolation mechanisms applied by the Realizer during slice realization, ranging from basic best-effort segregation to military-grade physical decoupling.

IETF Isolation Level

Operational Description

Security / Operational Implication for the Network Slice

No-isolation

Network slices are not separated; processing and routing resources are fundamentally shared across all traffic.

Possesses the lowest security posture; suitable solely for best-effort public traffic without SLA guarantees.

Logical-isolation

Separation is achieved primarily through logical Quality of Service (QoS) mechanisms, statistical multiplexing, and standard VLAN tagging.

Prevents basic congestion bleed but completely lacks hardware-level security against advanced persistent threats.

Process-isolation

Slices explicitly include dedicated software thread and process-level isolation within the hosting hypervisors or Virtualized Network Functions (VNFs).

Greatly enhances operational stability in shared edge-computing environments by preventing software-layer crashes from cascading.

Virtual-resource-isolation

Slices possess entirely dedicated, heavily partitioned virtual resources (vCPUs, discrete RAM blocks).

Effectively prevents hypervisor-level resource monopolization and noisy-neighbor performance degradation.

Network-functions-isolation

Specific Network Functions (NFs) are deployed and dedicated entirely to a single, specific network slice.

Eliminates cross-slice data contamination within the software routing logic and state tables.

Service-isolation

A highly abstracted topological state where underlying virtual resources and NFs may be technically shared, but are strictly partitioned by advanced service logic.

Optimally balances hardware resource efficiency with highly stringent service layer security protocols.

Physical-network-isolation

Slice traffic is forcefully routed over physically separated optical links, wavelengths, or discrete hardware switch ports.

Delivers extreme security; heavily mitigates shared-path eavesdropping and physical traffic interception.

Hard Slice (Total Physical)

The absolute physical separation of all compute nodes, IP routing planes, and optical transport components (often geographically).

Provides maximum possible security; mandatory for national defense, critical infrastructure, and high-tier quantum deployments.

Derived directly from IETF Transport Network Slice Isolation Levels utilized by the Cognitive Controller OS.13

Closed-Loop Automation, Observability, and Network Digital Twins

As the complexity of multi-domain slicing scales exponentially to accommodate vast numbers of IoT devices and enterprise workloads, manual configuration and traditional polling-based monitoring become entirely unviable.3 Cognitive Controller resolves this critical operational bottleneck through the implementation of a sophisticated, intent-driven end-to-end network automation framework that rigorously aligns with the ETSI Zero-touch network and Service Management (ZSM) architectural reference.1

Advanced Observability and KPI Management

In the architectural overhaul introduced in Release 4 and subsequently heavily enhanced in Release 6, the legacy, monolithic monitoring logic of previous controllers was completely deprecated and decentralized into three highly specialized, independent microservices: the KPI Manager, the Telemetry component, and the Analytics engine.1

  • KPI Manager: This component focuses exclusively on managing Key Performance Indicator (KPI) descriptors, meticulously detailing the exact observation points distributed across the physical network together with the specific sample types they are authorized to manage.1

  • Telemetry Component: This microservice interfaces directly with the physical network equipment to aggregate massive volumes of real-time monitoring data.1 Release 6 introduced extensive, native support for P4 in-band telemetry.2 Unlike traditional polling methods (like SNMP) which consume heavy CPU cycles on the router control plane, P4 in-band telemetry allows programmable switches to append state information directly onto the data packets themselves as they traverse the data plane at full line rate.2 This provides the controller with unprecedented, microsecond-level visibility without any processing overhead. Additionally, advanced OpenConfig and gNMI collectors supplement this architecture by continuously streaming stateful device data.2

  • Analytics Component: Operating in tandem with an overarching Prometheus observability framework, this engine analyzes the aggregated, high-velocity telemetry utilizing sophisticated algorithms ranging from simple data aggregation and threshold-based alarms to highly complex statistical analyses and future-facing machine learning predictive models.1

Intent-Based Event-Condition-Action (ECA) Automation

The continuous ingestion of real-time telemetry feeds directly into Cognitive Controller's policy-driven, closed-loop automation engines.2 To execute intent-based orchestration dynamically, Cognitive Controller utilizes highly structured Event-Condition-Action (ECA) policies.7 The underlying automation framework acts as a perpetual motion machine, continually evaluating network conditions against predefined intent matrices.7

For instance, an administrator can define a strict ECA monitoring policy mapped to a specific hardware deployment: If the Event triggers indicating "Device with ID X is enabled and has successfully finished bootstrapping", and the system validates the Condition that "Device with ID X is currently not monitored", the automation engine autonomously executes the Action to "Start monitoring of highly specific KPIs on device with ID X".13 By applying these highly logical ECA loops directly to overarching slicing intents, Cognitive Controller achieves the capacity to autonomously trigger critical interventions—such as initiating optical bandwidth expansion via TAPI, or dynamically rerouting L3 IP traffic via NETCONF—in immediate response to real-time events like degraded optical signal quality, the detection of a physical fiber cut, or the saturation of a QKD cryptographic key pool.2

IETF SIMAP and the Instantiation of Network Digital Twins

A defining innovation of Cognitive Controller Release 6—setting it apart from contemporary open-source controllers—is the native integration of the IETF-aligned SIMAP connector.2 This powerful capability enables the generation and continuous maintenance of highly accurate, real-time Network Digital Twins.2 By abstracting the complex underlying physical and virtual network topologies and continuously "flavoring" this abstraction with highly structured, real-time telemetry data derived from the gNMI streams and P4 in-band collectors, the controller creates a perfect digital mirror of the physical infrastructure.2 This allows network operators to safely simulate the exact impact of massive slice configurations, cryptographic routing changes, or failure scenarios in a highly accurate, risk-free virtual environment before mathematically committing the execution logic via the NSC to the live data plane.2

The Blueprint: Realizing a Multilayer, Quantum-Secured Network Slice




Integrating the vastly disparate components of optical networking, IP routing, QKD quantum cryptography, and autonomous slice management requires an extraordinarily strict orchestration workflow. The following detailed technical sequence illustrates exactly how Cognitive Controller coordinates these disparate domains to successfully provision a secure, multi-layer service slice conforming to zero-touch deployment methodologies.15

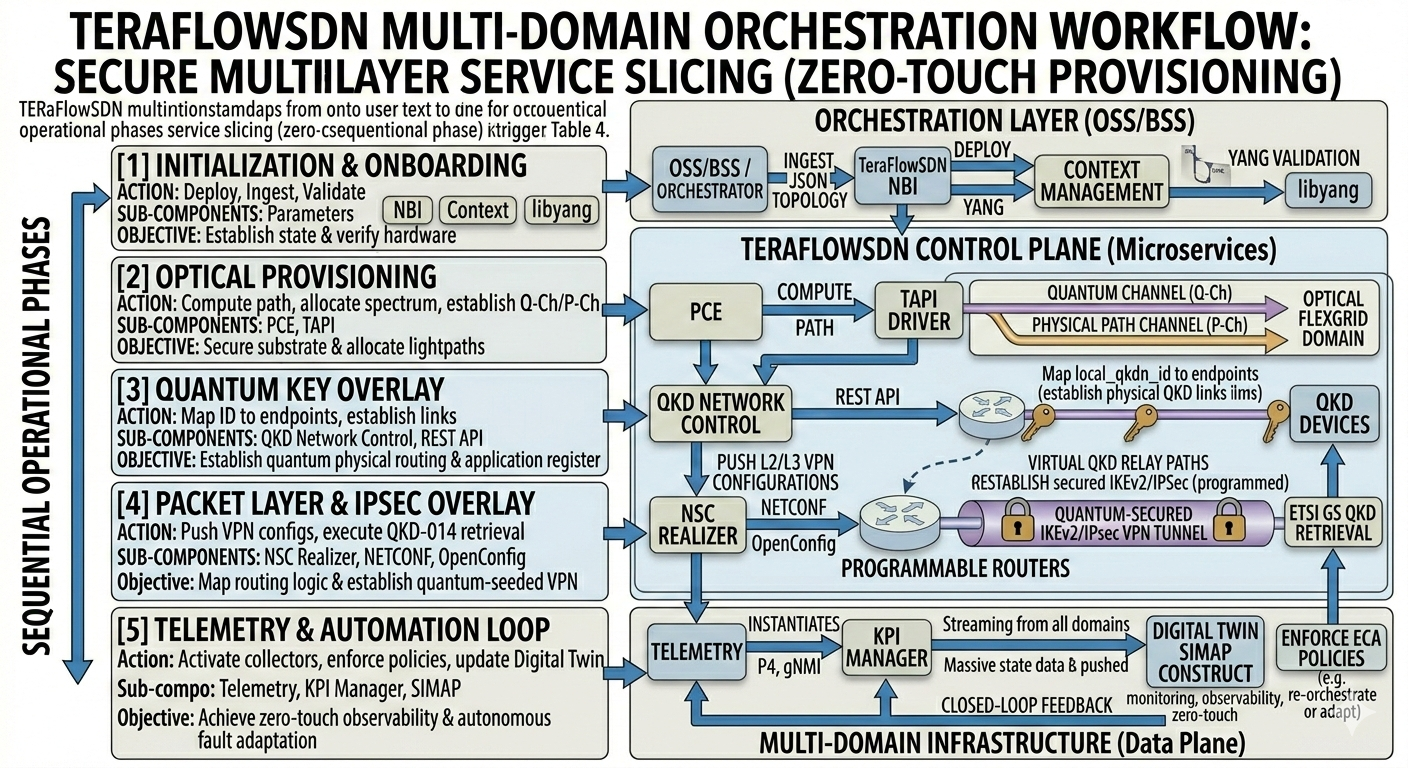

Table 4 outlines the sequential operational phases executed by the Cognitive Controller orchestrator to achieve full service activation.


Operational Phase

Orchestrator Action

Sub-Component / Protocol Utilized

Primary Objective

1. Initialization & Onboarding

Deploy microservices, ingest JSON topology, validate YANG schemas.

NBI, Context Management, libyang

Establish controller state and verify physical hardware readiness.

2. Optical Provisioning

Compute physical path, allocate optical spectrum, establish Q-Ch/P-Ch.

PCE, TAPI Driver, Device Component

Secure the L0/L1 optical substrate and allocate flexgrid lightpaths.

3. Quantum Key Overlay

Map local_qkdn_id to endpoints, establish physical/virtual QKD links.

QKD Network Control, REST API

Establish the quantum-secured physical routing and application register.

4. Packet Layer & IPsec Overlay

Push L2/L3 VPN configurations, execute QKD-014 key retrieval for IKEv2.

NSC Realizer, NETCONF, OpenConfig

Map IP routing logic to optical paths and establish the quantum-seeded VPN.

5. Telemetry & Automation Loop

Activate P4/gNMI collectors, enforce ECA policies, update Digital Twin.

Telemetry, KPI Manager, SIMAP

Achieve zero-touch observability and autonomous fault adaptation.

Operational sequence derived from Cognitive Controller documentation, Hackfest demonstrations, and protocol integration requirements.2

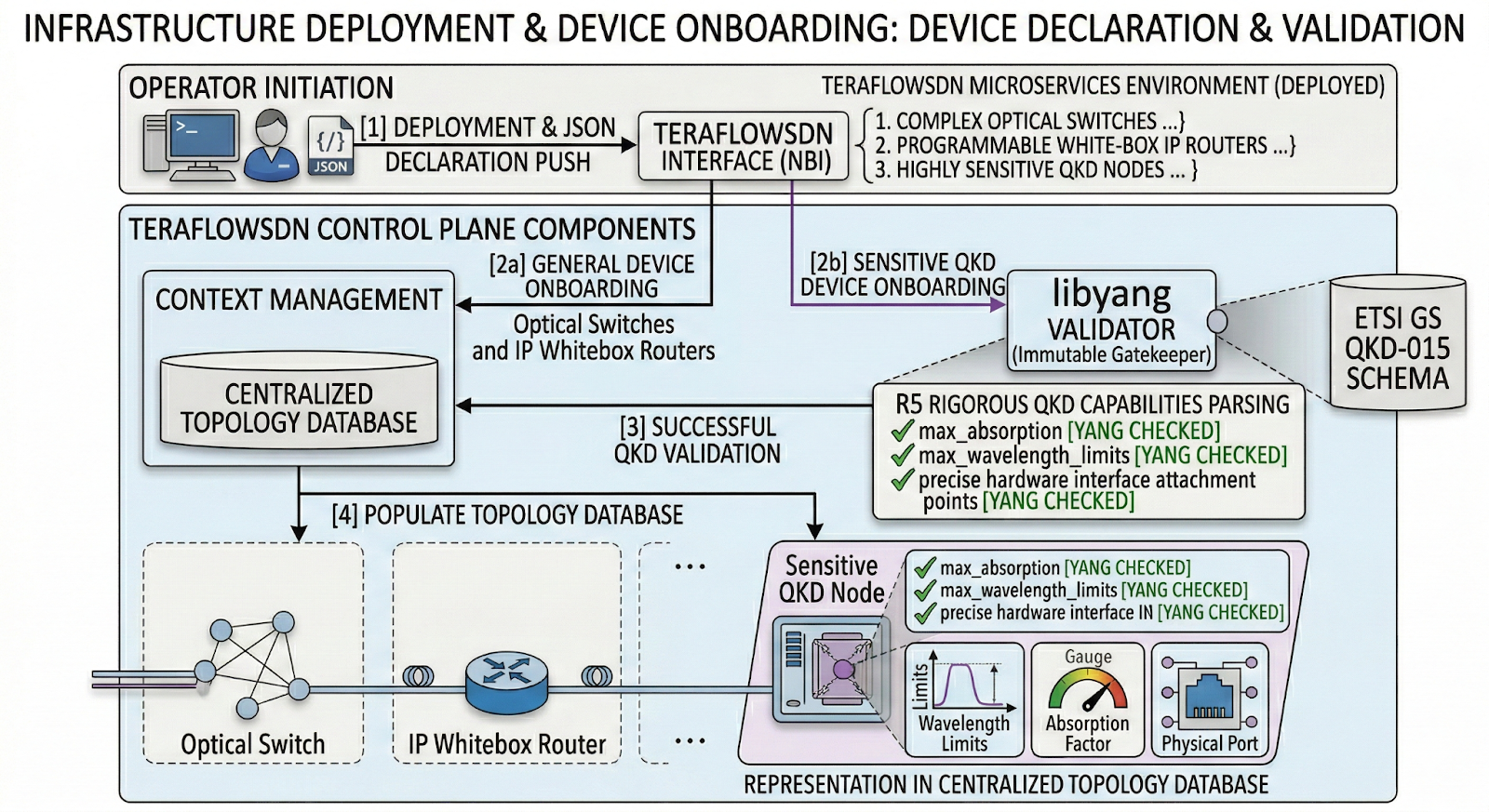

Phase 1: Infrastructure Deployment and Device Onboarding



The lifecycle officially begins with the deployment of the Cognitive Controller microservices environment.23 The physical infrastructure—comprising complex optical switches, programmable white-box IP routers, and highly sensitive QKD nodes—is declared via detailed JSON descriptors pushed into the controller's Northbound Interface.16 The Context Management component immediately parses this data, populating the centralized topology database. For the sensitive QKD devices, the libyang validator acts as an immutable gatekeeper, rigorously checking the input against ETSI GS QKD-015 schemas, ensuring the absolutely correct parsing of vital physical capabilities like max_absorption, operational wavelength limits, and precise hardware interface attachment points.16

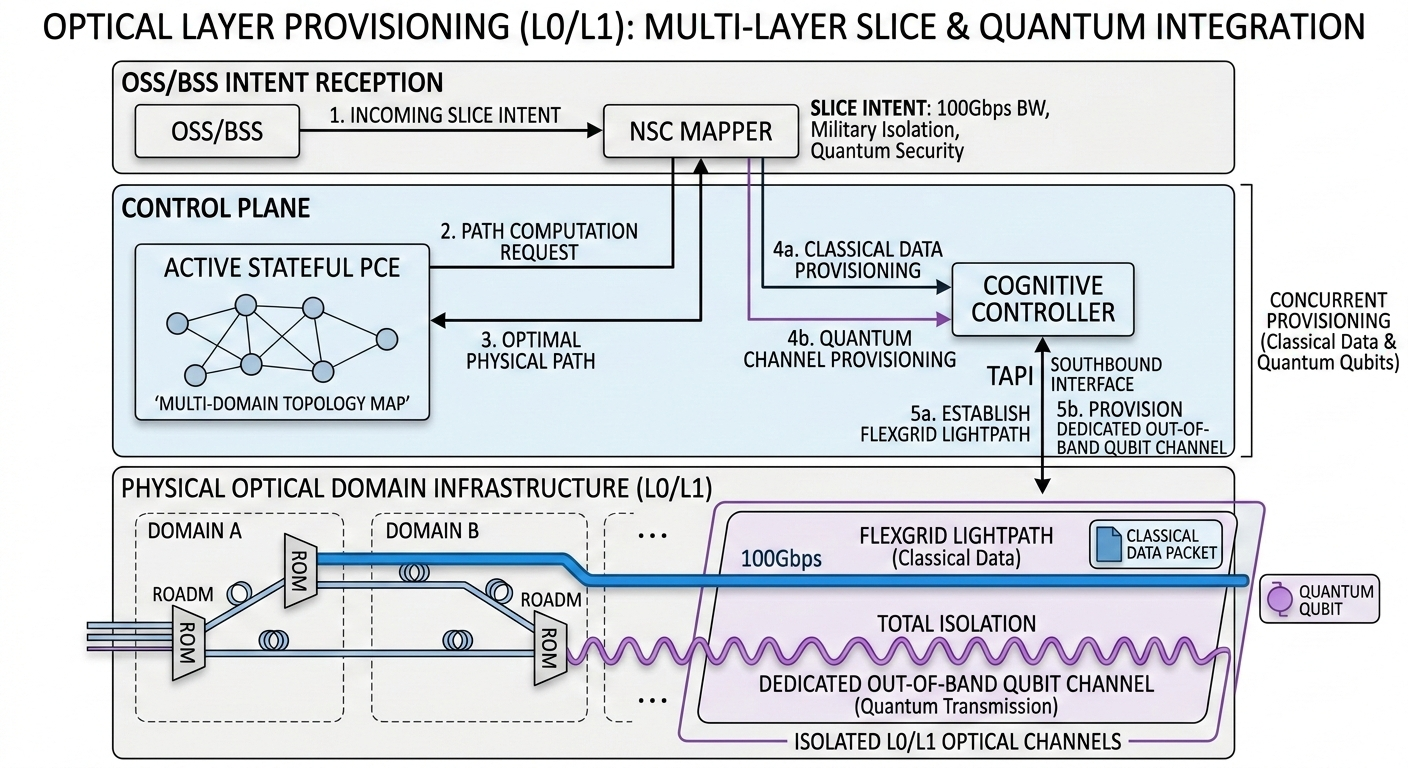

Phase 2: Optical Layer Provisioning (L0/L1)



With the network state validated, the NSC Mapper processes an incoming slice intent received from the OSS/BSS, which requires specific bandwidth guarantees and military-grade isolation.28 The Active Stateful PCE is triggered, computing a highly optimal, multi-domain physical path. Through the TAPI Southbound Interface, Cognitive Controller instructs the physical optical domain infrastructure to establish a highly specific flexgrid lightpath.2 Concurrently, because the overarching intent demands quantum security, the controller provisions a dedicated, out-of-band optical channel specifically for quantum qubit transmission, isolating it entirely from the classical data paths.9

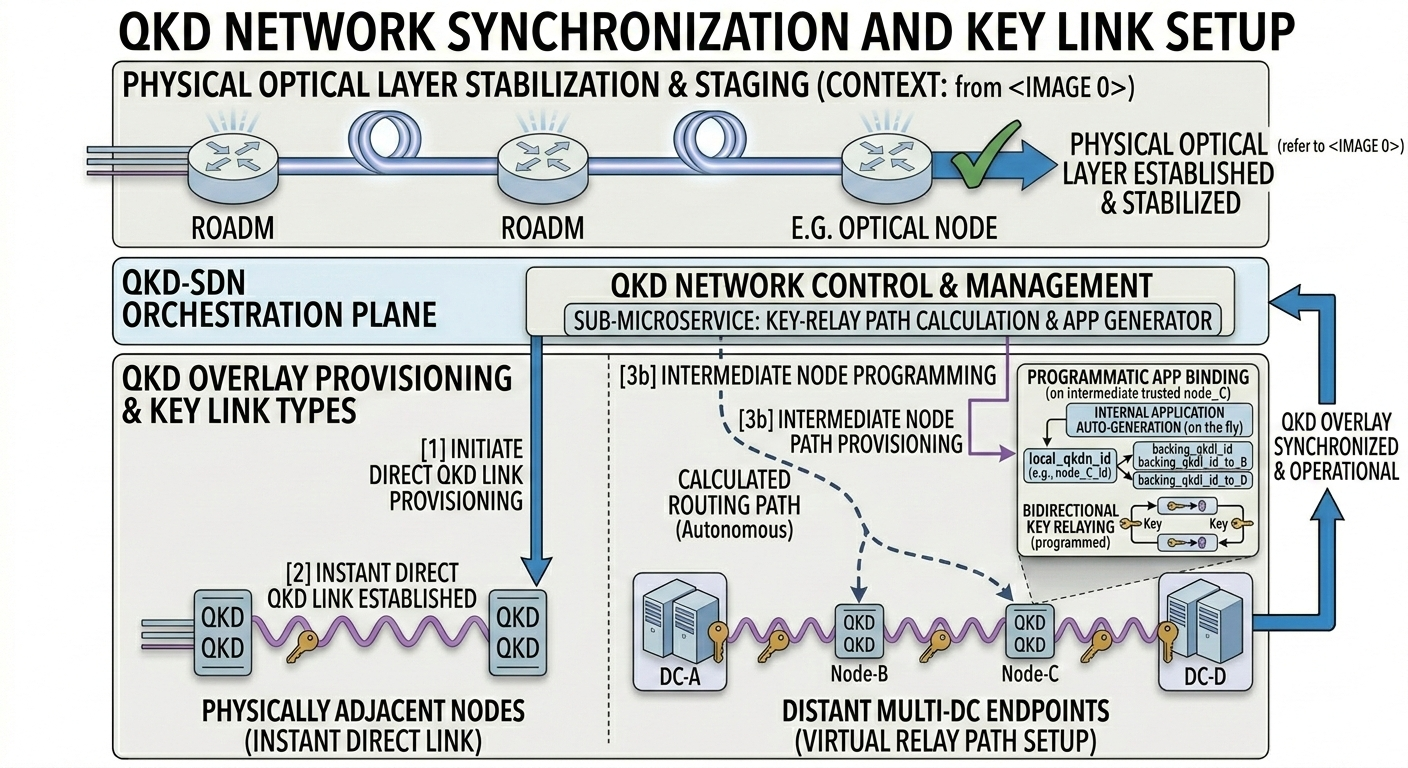

With the physical optical layer successfully established and stabilized, the specialized QKD Network Control & Management component initiates the provisioning of the secure cryptographic overlay.16 For physically adjacent nodes spanning the slice, physical QKD links are established directly and instantly.23 However, for distant endpoints spanning across multiple data centers, the controller autonomously calculates a complex routing path through intermediate trusted nodes. Internal applications are auto-generated on the fly, programmatically binding the local_qkdn_id to backing_qkdl_id parameters, which mathematically orchestrates highly secure, bidirectional key relaying across the newly established virtual path.16

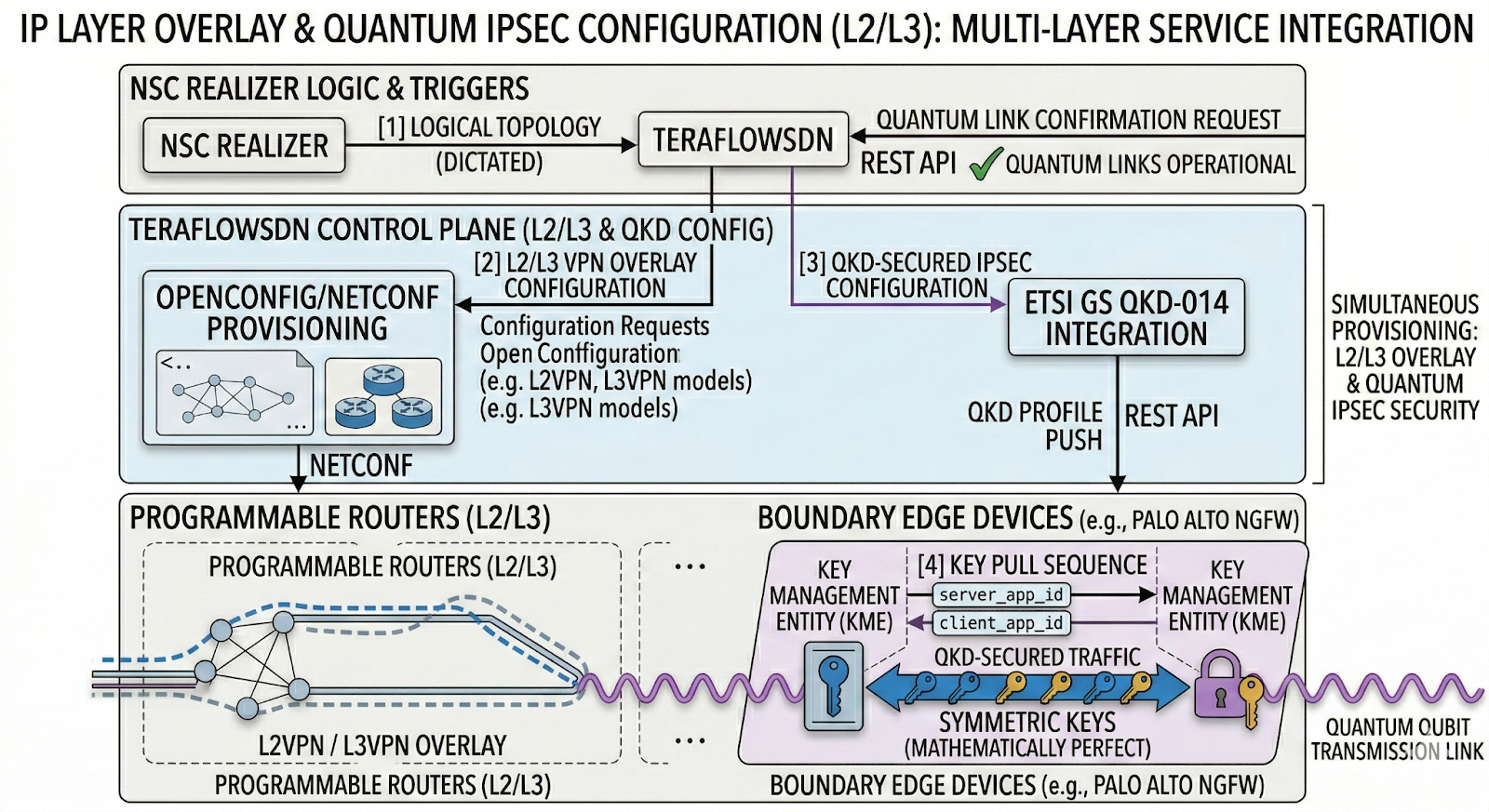

Phase 4: IP Layer Overlay and Quantum IPsec Configuration (L2/L3)



Upon the successful validation of the transport layer and the operational confirmation of the quantum links via the REST API, Cognitive Controller moves to configure the packet forwarding plane.15 Utilizing standardized NETCONF protocols and comprehensive OpenConfig models, the controller configures the programmable routers to establish an L2VPN or L3VPN overlay perfectly aligned with the exact logical topology dictated by the NSC Realizer.4

Simultaneously, to fundamentally secure the data traffic traversing the slice, Cognitive Controller leverages the ETSI GS QKD-014 integration.10 The controller accesses the boundary edge devices (such as the Palo Alto NGFWs) via their REST APIs to establish the required QKD profiles. These edge devices immediately communicate directly with their local Key Management Entities (KMEs) using the precisely configured server_app_id and client_app_id application registers, seamlessly pulling mathematically perfect symmetric keys to seed an IKEv2/IPsec VPN tunnel.10

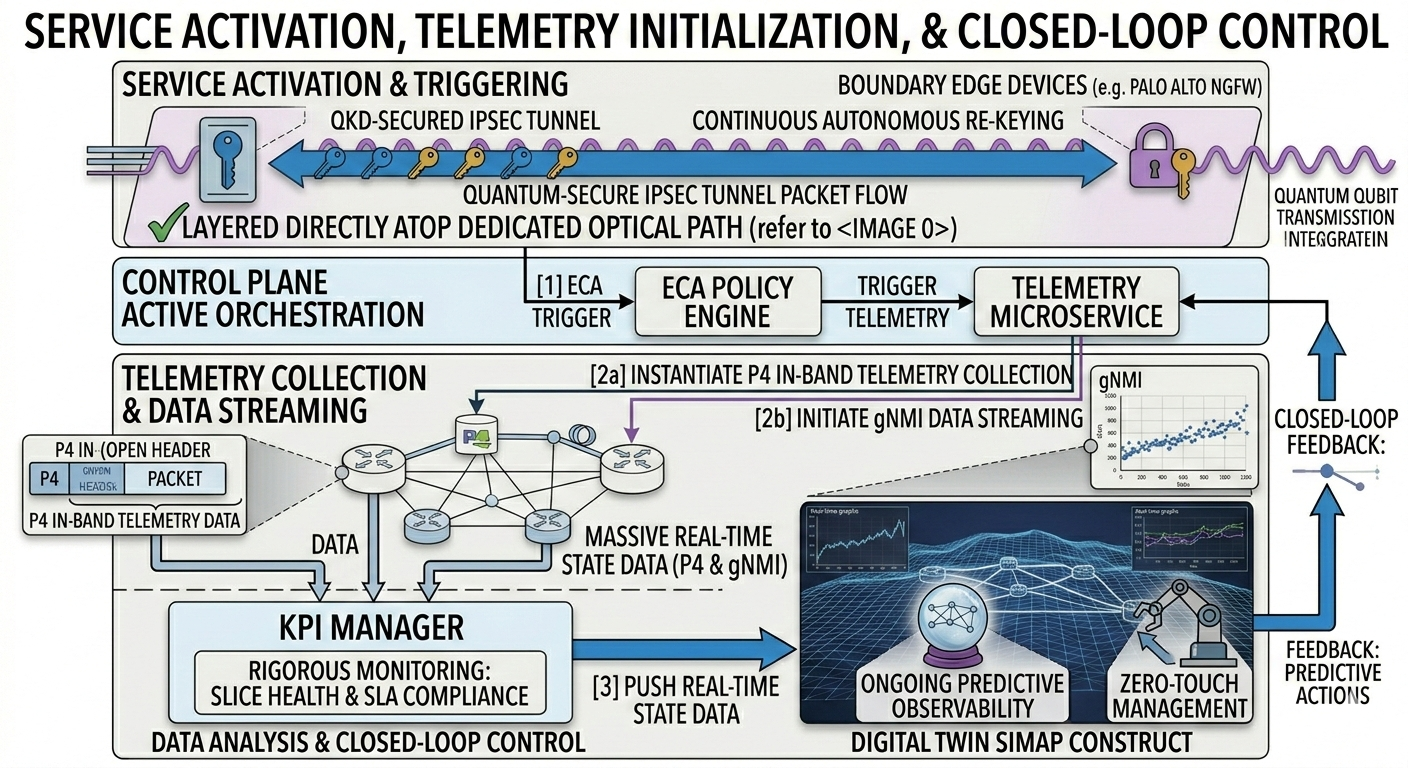

Phase 5: Service Activation, Telemetry Initialization, and Closed-Loop Control



Once the IP packet flow is successfully routed through the IPsec tunnel—a tunnel which itself is continuously, autonomously re-keyed by the quantum-secure QKD infrastructure layered directly atop the dedicated optical path—the multi-layer slice service is officially activated.10 Instantly, the ECA policy engine triggers the Telemetry microservice to instantiate P4 in-band telemetry collection and continuous gNMI data streaming across all utilized hardware nodes.1 The KPI Manager begins rigorously monitoring the slice's health and SLA compliance, pushing massive volumes of real-time state data directly into the Digital Twin SIMAP construct for ongoing predictive observability and zero-touch management.1

Conclusions and Future Outlook

The architectural deployment of Cognitive Controller represents a profoundly transformative blueprint for the orchestration and management of beyond-5G and 6G telecommunications infrastructure. By establishing a robust, cloud-native, microservices-driven framework, the controller successfully and permanently dismantles the rigid, legacy operational silos that historically separated physical optical transmission lines, logical IP routing planes, and highly sensitive cryptographic security domains.

The seamless, standardized integration of ETSI GS QKD standards—specifically 014, 015, and 018—into the very fabric of the SDN controller ensures that cryptographic lifecycle management is definitively elevated from a localized, hardware-specific constraint into a highly dynamic, orchestrated, network-wide utility. When this quantum capability is intrinsically paired with the IETF-aligned Network Slice Controller, telecommunications organizations gain the unprecedented capacity to deploy highly customized, strictly isolated virtual networks that inherently and permanently resist quantum cryptographic harvesting. Ultimately, driven by sophisticated closed-loop automation utilizing ECA policies, line-rate P4 telemetry, and TAPI/OpenConfig resource abstraction, Cognitive Controller delivers a fully autonomous, highly deterministic, and entirely future-proof transport ecosystem capable of unconditionally supporting the most demanding zero-trust and quantum-safe operational intents of the 6G era.
